The myCNC team is happy to announce that EtherCAT products will soon be available for purchase!
The latest myCNC controller features cutting-edge EtherCAT technology, delivering accuracy and efficiency for a wide range of applications.
Our advanced myCNC EtherCAT CNC controller system, comprised of the Master Controller and the myCNC-CAT02 I/O Controller, allows the user to achieve smoother motion, higher throughput, and exceptional finished product quality.
We offer two Master Controller options:
- Industrial PC-based Master

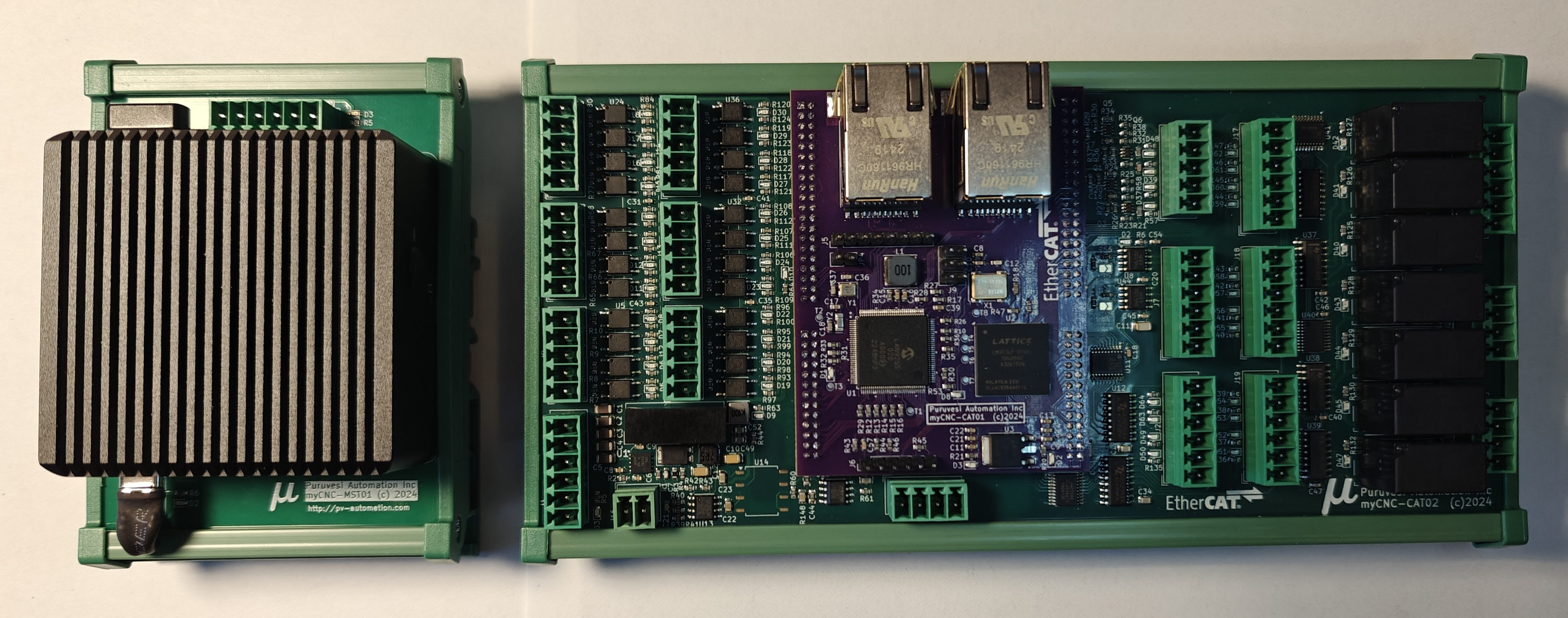

- myCNC-MST01 (pictured on the left in the photo above)
The myCNC-CAT02 IO-Controller is engineered for extensive connectivity, providing all the necessary interfaces for CNC machine control:
- Digital I/O: 24 Digital Inputs / 24 Digital Outputs.
- DAC: 2 Channels - Precise control for valves, and other analog-controlled devices.
- ADC: 3 Channels - Monitor process parameters and integrate feedback systems with high accuracy.
- Modbus for Custom Projects: Integrate with a wide array of peripheral devices and custom solutions via Modbus.
- PWM Outputs: 3 Channels - Pulse width modulation for applications requiring precise power control.
- 8+2 Axes: Control up to 8 primary motion axes, plus 2 independent auxiliary axes dedicated to focus and height control.
Laser Cutting
The myCNC-CAT02 is well-suited for the demanding requirements of laser cutting applications:
- Dedicated Focus & Height Control: The independent 2 auxiliary axes provide precise, real-time control over laser focus and height, crucial for achieving consistent kerf width, optimal power delivery, and superior edge finish across varying material thicknesses.
- High-Speed, Synchronized Motion: Leverage EtherCAT's deterministic communication for perfectly synchronized motion of all axes, ensuring smooth and accurate laser paths even at high cutting speeds.

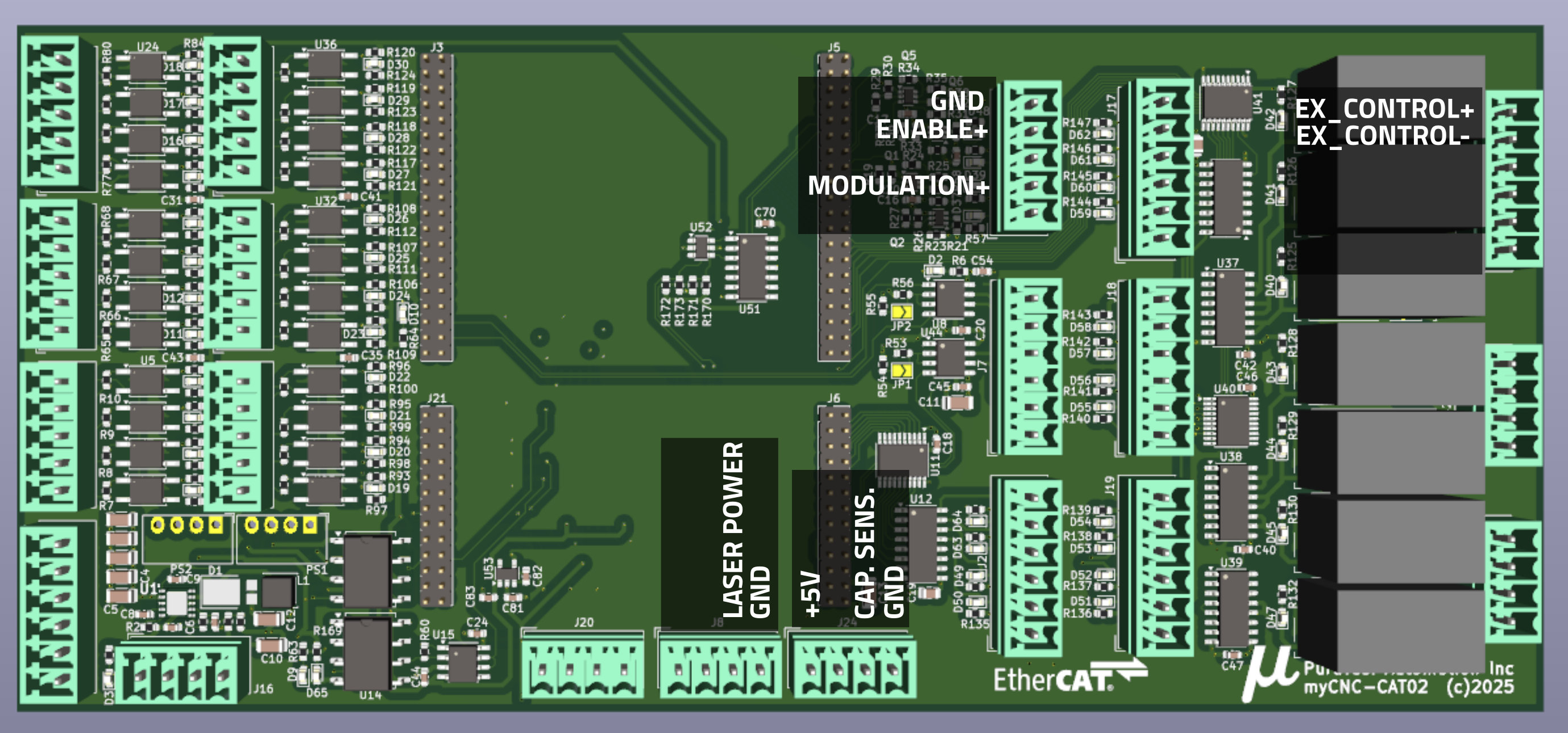

Please see the following diagram for the CAT02 port info:
Contact us today to learn how the myCNC EtherCAT CNC Controller can improve your manufacturing processes. Our engineering team is ready to discuss your specific needs and provide a tailored solution.
